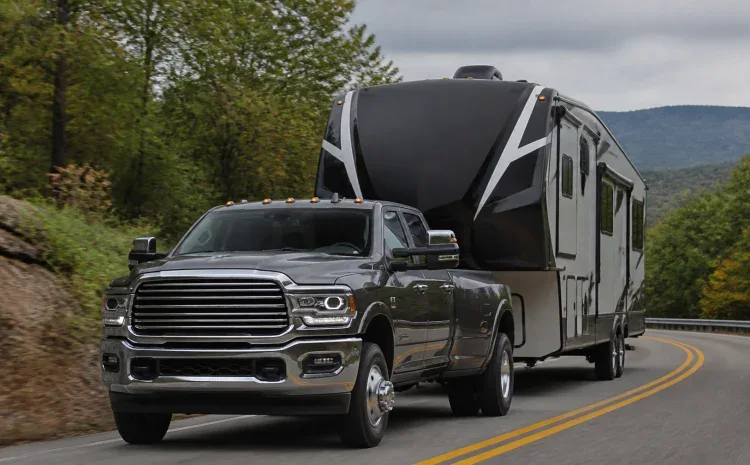

There’s a specific kind of sinking feeling you get when you’re pulling a heavy load through the rolling hills around Jersey Shore, PA, and you notice your transmission temperature gauge starting to creep into the red zone. You’ve got the trailer hooked up, the family or the work gear loaded down, and suddenly, your Ram truck is struggling to keep its cool.

If you drive a Cummins-powered Ram, you probably know that while these engines are legendary for their torque, the transmissions behind them: specifically the 68RFE and even the heavy-duty Aisin units: can be sensitive to heat. Heat is the number one killer of automatic transmissions. Once that fluid gets too hot, it starts to break down, and before you know it, you’re looking at a much more expensive bill than just a simple fluid swap.

At Dirty D’s Performance, we see this all the time. Whether you’re hauling a camper for a weekend at the lake or pulling a horse trailer through the mountains, keeping those temps down is critical for the long-term health of your rig. Let’s dive into the five most common reasons your Ram transmission is overheating and, more importantly, what you can do to fix it.

1. Restricted Airflow or Clogged Coolers

Your transmission relies on a heat exchanger (the cooler) to shed the massive amount of heat generated by the torque converter while you’re under load. Think of the transmission cooler as a smaller version of your radiator. If air can’t get through it, the heat has nowhere to go.

In many Ram trucks, the transmission cooler is part of a “cooling stack” located behind the grille. Over time, this stack can get packed with road debris, Pennsylvania mud, or even thousands of bugs from those late-night summer drives. When the fins are blocked, airflow is restricted, and your cooling efficiency drops off a cliff.

The Fix:
First, grab a flashlight and look through your grille. If you see a wall of dirt and debris, it’s time for a cleaning. Be careful not to use a high-pressure power washer directly on the fins, as they bend easily. A gentle garden hose and some degreaser usually do the trick. If the cooler is internally clogged from a previous transmission failure, it likely needs a full replacement, which we handle regularly during a cummins transmission service at our shop.

2. The Infamous Thermal Bypass Valve

If you own a 2013 or newer Ram with the 68RFE transmission, you have a component called a thermal bypass valve. This little block is designed to help the transmission warm up faster in cold weather by keeping the fluid from going to the cooler until it reaches a certain temperature (usually around 180°F).

The problem? These valves are notorious for sticking in the “closed” position. When that happens, your transmission fluid just loops back into the transmission without ever seeing the cooler. You’ll see your temps skyrocket even on relatively flat ground or with light loads.

The Fix:
The most common and effective fix is a thermal bypass delete kit. This replaces the factory thermostat block with a high-flow piece that allows fluid to flow to the cooler at all times. It’s one of the best “bang-for-your-buck” upgrades you can do for a Ram truck that does a lot of towing.

3. Old Fluid and Clogged Filters

Transmission fluid isn’t just a lubricant; it’s a hydraulic fluid and a coolant. As it ages, it goes through a process called oxidation. Basically, the heat “cooks” the fluid, causing it to lose its ability to transfer heat effectively.

Furthermore, if your internal filters are starting to clog with normal wear-and-tear debris, the pump has to work harder to move fluid through the system. Less fluid flow means less heat being carried away to the cooler. We generally recommend a full cummins transmission service every 25,000 to 30,000 miles if you are frequently towing.

The Fix:
Don’t just do a “drain and fill.” A proper service includes dropping the pan, replacing both the sump filter and the spin-on filter (if applicable), and using a high-quality ATF+4 fluid. If your fluid smells burnt or looks like dark coffee, it’s definitely time to visit a diesel repair shop near you for a professional evaluation.

4. Engine Cooling System Issues

It might sound strange, but your engine’s cooling system has a massive impact on your transmission’s temperature. The transmission cooler often sits right in front of the radiator. If your engine is running hot: perhaps due to a failing fan clutch or a tired water pump: the air passing through the transmission cooler is already pre-heated by the engine’s heat.

Additionally, many Ram trucks use a liquid-to-liquid heat exchanger mounted on the side of the engine block. If your engine coolant is poorly maintained or your radiator is partially blocked, the transmission fluid can’t shed heat into the coolant like it’s supposed to.

The Fix:
Check your fan clutch. If you’re towing and you don’t hear that “roar” of the fan engaging when things get hot, your fan clutch might be shot. Keeping your engine’s cooling system in top shape is just as important for the transmission as it is for the Cummins under the hood. You can check out our engine repair services to make sure your entire cooling stack is performing as it should.

5. Torque Converter Slip and Internal Wear

The torque converter is the component that generates the most heat in an automatic transmission. When you’re at a cruising speed, the converter “locks up” to create a direct mechanical connection between the engine and the gears, which stops heat generation.

However, if you are towing a load that is too heavy for your current gear, or if you’re “lugging” the engine (driving at low RPM in a high gear), the converter may frequently unlock or slip. This friction creates massive amounts of heat very quickly. If you’ve noticed your truck “shuddering” or the RPMs jumping around while the cruise control is on, you might have a failing torque converter.

The Fix:
Adjust your driving habits first. Use the “Tow/Haul” mode and don’t be afraid to lock out the higher overdrive gears when you’re climbing grades. This keeps the engine in its power band and helps the transmission stay locked up. If the slip is caused by internal wear or a failing valve body, it’s time for an inspection. Sometimes a valve body upgrade can increase line pressure and help those clutches hold better, preventing the heat-generating slip in the first place.

Keep Your Rig on the Road

Towing shouldn’t be a stressful experience where you’re constantly glancing at the gauges with your fingers crossed. By addressing these five areas: airflow, the bypass valve, fluid health, engine cooling, and driving habits: you can significantly extend the life of your Ram’s transmission.

At Dirty D’s Performance, we specialize in making sure your diesel truck is ready for whatever job you throw at it. From routine maintenance to custom performance cooling upgrades, we treat every truck that comes into our shop like it’s our own.

If your trans temps are climbing higher than they used to, or if you just want the peace of mind that comes with a professional inspection, give us a call. We’re your local diesel repair shop right here in Jersey Shore, PA, and we’re ready to help you get back to hauling with confidence.
